SmartBoard

Ceiling Wall Floor

SCG SmartBOARD

Fiber Cement Board

Non Asbestos

SCG

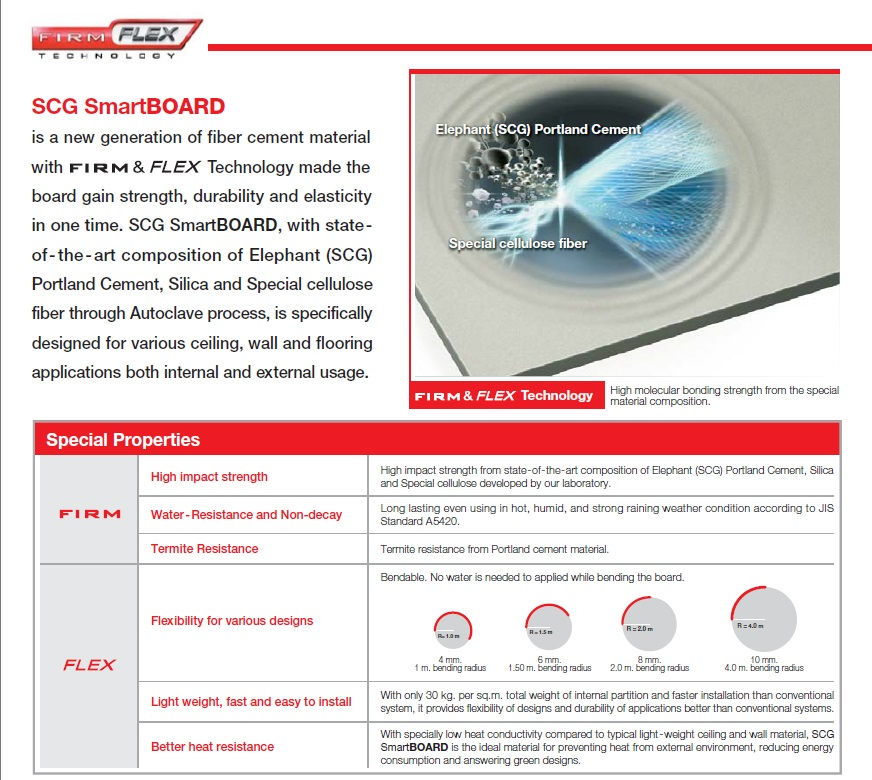

SCG SmartBOARD

High molecular bonding strength from special material composition.

FIRM & FLEX Technology

Special Properties

FIRM

FLEX

High Impact strength

Water-Resistance and Non-decay

Termite Resistance

Flexibility for various designs

Light weight, fast & easy to install

Better heat resistance

Long lasting even using in hot, humid, and strong raining weather condition according to JIS Standard A5420.

Termite resistance from Portland cement material.

With only 30 kg. per sq.m total weight of internal partition and faster installation than conventional system, it provides flexibility of designs and durability of applications better than conventional systems

With specially low heat conductivity compared to typical light-weight ceiling and wall material, SCG SmartBOARD is the ideal material for preventing heat from external environment, reducing energy consumption and answering green designs.

High Impact strength from state-of-the-art composition of Elephant (SCG)Portand Cement, Silica and Special cellulose developed by our laboratory.

Bendable. No water is needed to applied while cement material.

is a new generation of fiber cement material with FIRM & FLEX Technology made the board gain strength, durability and elasticity in one time. SCG SmartBOARD, with state-of-the-art composition of Elephant (SCG) Portland Cement, Silica and Special cellulose fiber through Autoclave process, is specifically designed for various ceiling, wall and flooring applications both internal and external usage.

SCG

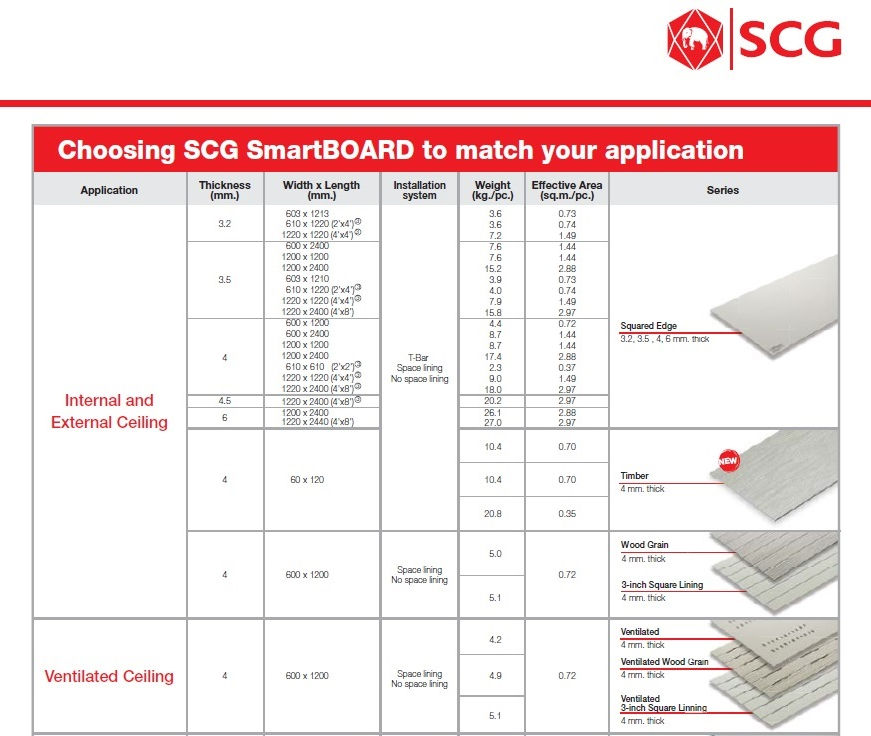

Choosing SCG SmartBOARD to match your application

Application

Thickness
(mm.)

Width x Length

(mm.)

Installation
system

Weight

(kg./pc.)

Effective Area
(sq.m./pc.)

Series

Internal and External Ceiling

Ventilated Ceiling

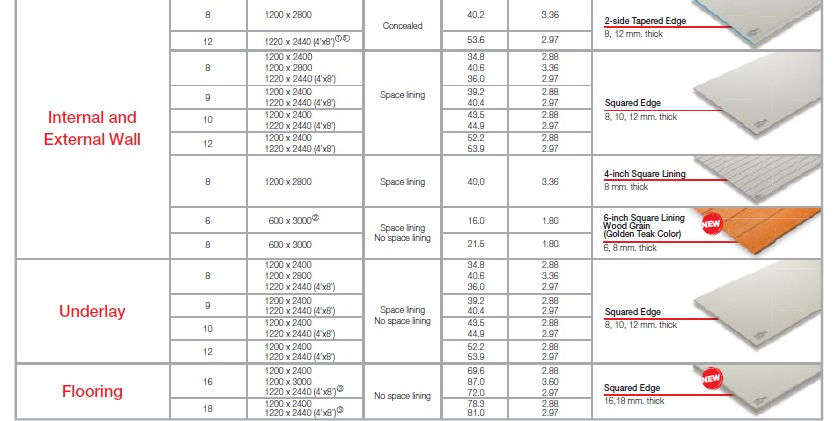

Internal and
External Wall

Underlay

Flooring

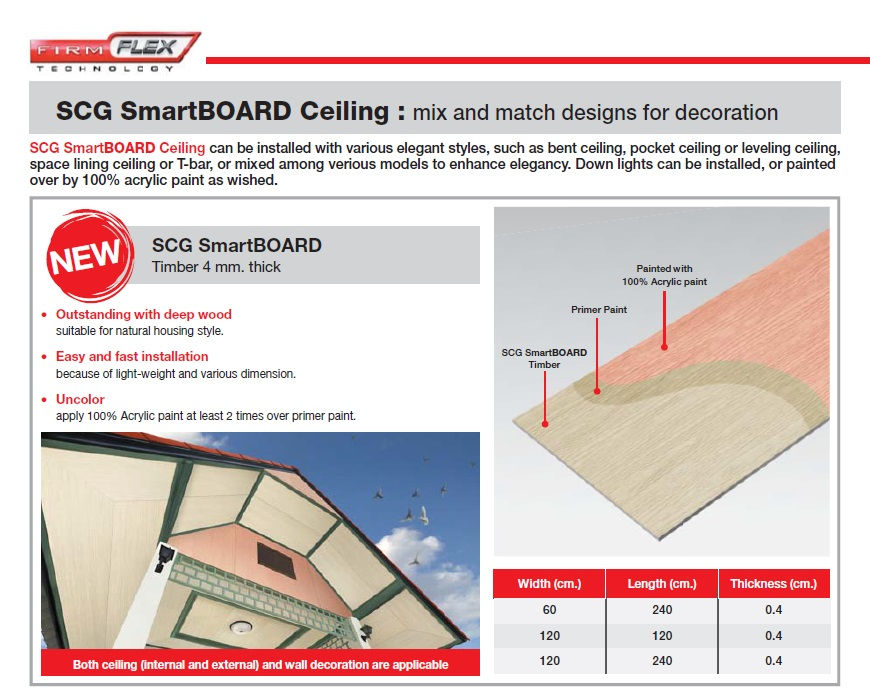

SCG SmartBOARD Ceiling : mix and match designs for decoration

SCG SmartBOARD Ceiling can be installed with various elegant styles, such as bent ceiling, pocket ceiling or leveling ceiling, space lining ceiling or T-bar, or mixed among various models to enhance elegance. Down lights can be installed, or painted over by 100% acrylic paint as wished.

SCG SmartBOARD
Timber 4 mm. thick

• Outstanding with deep wood
suitable for natural housing style.
• Easy and fast installation
because of light-weight and various dimension.
• Uncolor
apply 100% Acrylic paint at least 2 times over primer paint.

Both ceiling (internal and external) and wall decoration are applicable

Width (cm.)

Length (cm.)

Thickness (cm.)

Internal Ceiling

Using several series of SCG SmartBOARD to create interesting perspective for your ceiling in your house.

SCG

Internal Ceiling

Using several series of SCG SmartBOARD to make your ceiling fabulous.

Internal Space
No Lining Ceiling

Internal Space
Lining Ceiling

Using SCG SmartBOARD Wood Grain 4 mm, thick to
create natural style.

Using SCG SmartBOARD Squared Edge 4mm. thick.

Using SCG SmartBOARD Squared Edge 4mm. thick to give outstanding elegant style.

SCG SmartBOARD with Ventilated drills for ventilation ceiling application

Cool House System

Cool air from outside flows through the SCG SmartBOARD's
ventilated drills to replace hot air under roof.

Hot air is pushed from air pressure out via the SCG SmartBOARD's ventilated drills on the other side. This will help to reduce the air temperature under the roof.

When the temperature in the roof air gap is lower, less heat can pass
through the living area.

Double your heat protection by using SCG SmartBOARD for your
internal ceiling because it has low k (heat conductivity rate) to minimize heat transferring from roof air gap in the living area.

SCG SmartBOARD Ceiling with ventilation drills

This is the ceiling with the factory-made drilled holes suitable for eaves ceiling application because it can endure the water or moisture. Three types of ventilated SCG SmartBOARD are profiled ventilated, ventilated wood grain, and ventilated
3-inch lining.

External Ceiling

External Terrace Ceiling

Using SCG SmartBOARD Ventilated 4 mm. thick.

Using SCG SmartBOARD Ventilated Wood Grain 4 mm. thick.

Using SCG SmartBOARD Wood Grain / Ventilated Wood Grain 4 mm. thick.

SCG

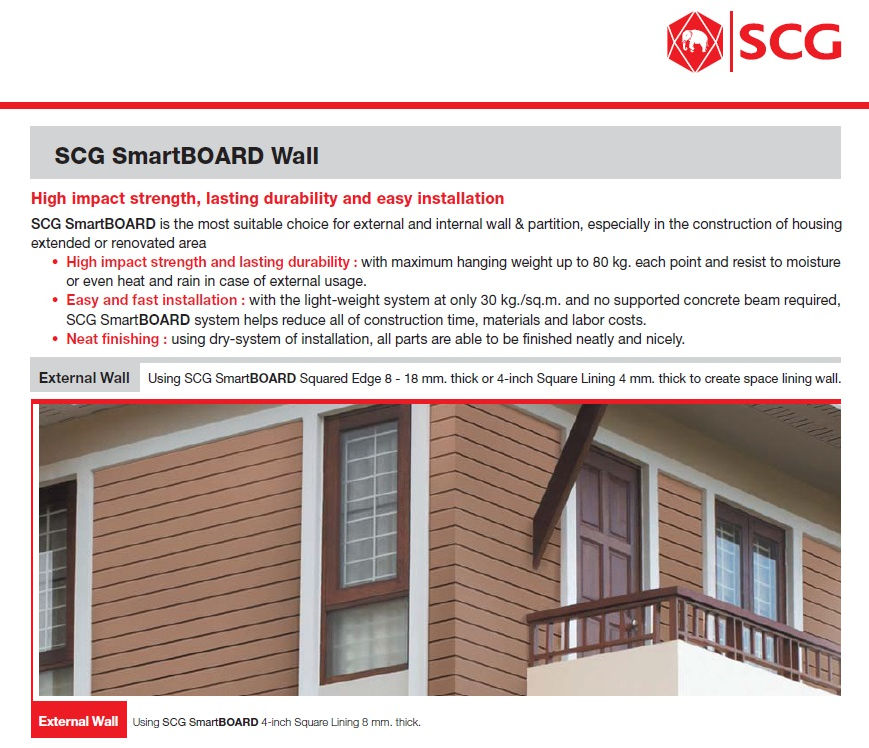

SCG SmartBOARD Wall

High impact strength, lasting durability and easy installation

SCG SmartBOARD is the most suitable choice for external and internal wall & partition, especially in the construction of housing extended or renovated area

External Wall

Using SCG SmartBOARD Squared Edge 8 - 18 mm. thick or 4-inch Square Lining 4mm. thick to create space lining wall.

External Wall

Using SCG SmartBOARD 4-inch Square lining 8 mm. thick.

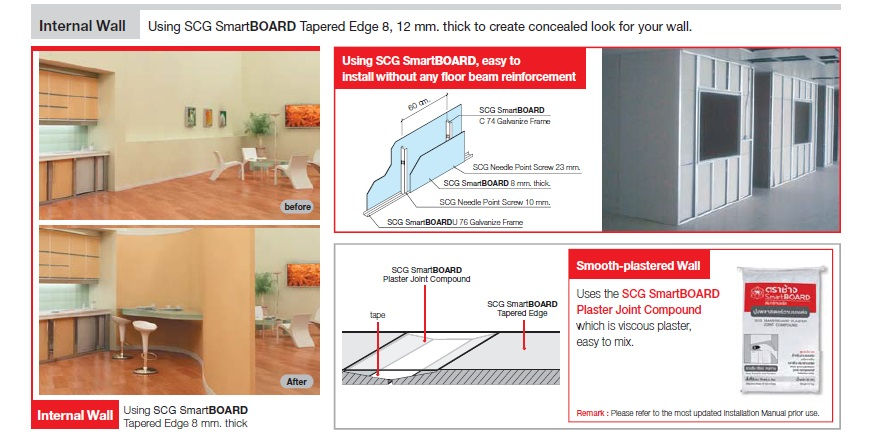

Internal Wall

Using SCG SmartBOARD Tapered Edge 8, 12 mm. thick to create concealed look for your wall.

Internal Wall

Using SCG SmartBOARD
Tapered Edge 8 mm. thick

Using SCG SmartBOARD, easy to
install without any floor beam reinforcement

Smooth-plastered Wall

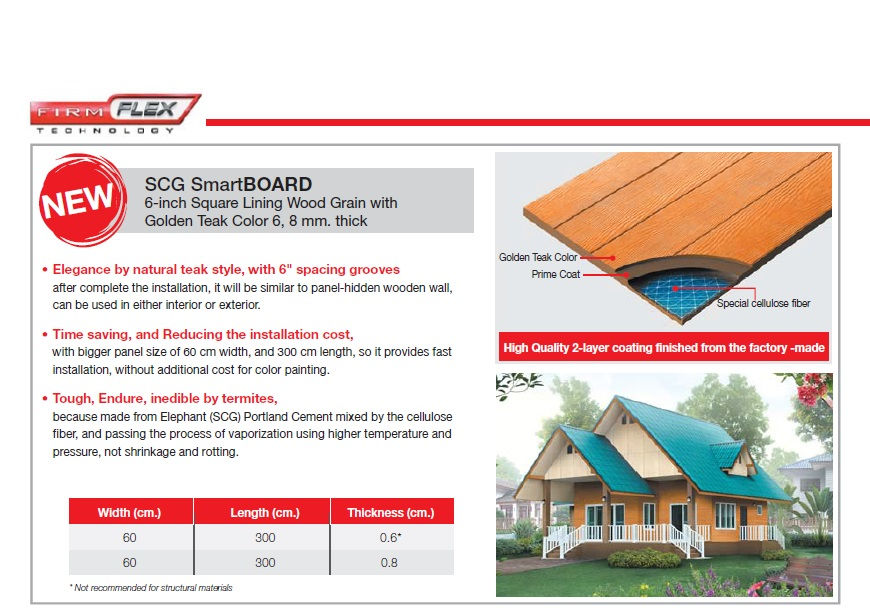

SCG SmartBOARD
6-inch Square Lining Wood Grain with
Golden Teak Color 6, 8 mm. thick

Width (cm.)

Length (cm.)

Thickness (cm.)

High Quality 2-layer coating finished from the factory -made

Decoration by covering the surface of SCG SmartBOARD

Internal Wall

Using SCG SmartBOARD Tapered Edge 8 mm. thick
painted with 100% Acrylic paint.

Using SCG SmartBOARD Squared Edge 10 mm. thick
installed with ceramic tiles.

SCG SmartBOARD Wall, can be used either interior or exterior

External Cladding
Metro Park Condominiumtown,
Bangkok

External Cladding
Phenix pulp and paper
plant, Khonkaen

Internal Wall
SCG Experience,
Bangkok

Creating space lining by using SCG SmartBOARD
Squared Edge 8 mm. thick.

Creating space lining by using
SCG SmartBOARD Squared Edge
10 mm. thick.

Using SCG SmartBOARD Squared Edge 8 mm.
thick plastered with plastering cement, make
1 - 3 cm. skim coat.

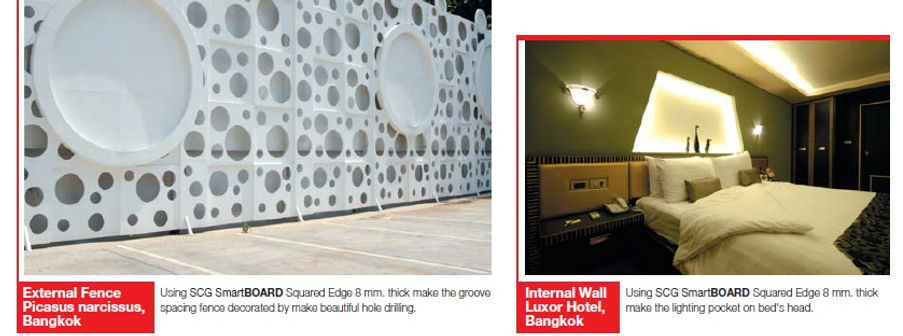

External Fence
Picasus narcissus,
Bangkok

Internal Wall
Lux or Hotel,
Bangkok

Using SCG SmartBOARD Squared Edge 8 mm. thick make the lighting pocket on bed's head.

Using SCG SmartBOARD Squared Edge 8 mm. thick make the groove spacing fence decorated by make beautiful hole drilling.

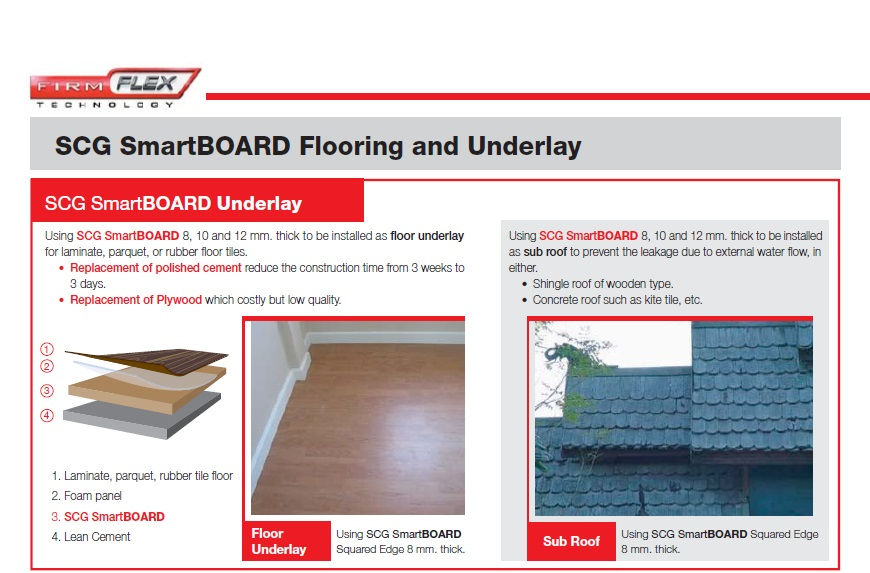

SCG SmartBOARD Flooring and Underlay

SCG SmartBOARD Underlay

Floor Underlay

Sub Roof

Using SCG SmartBOARD 8, 10 and 12 mm. thick to be installed as floor underlay for laminate. parquet, or rubber floor tiles.

Using SCG SmartBOARD Squared Edge 8 mm. thick

Using SCG SmartBOARD 8, 10 and 12 mm. thick to be installed
as sub roof to prevent the leakage due to external water flow, in either.

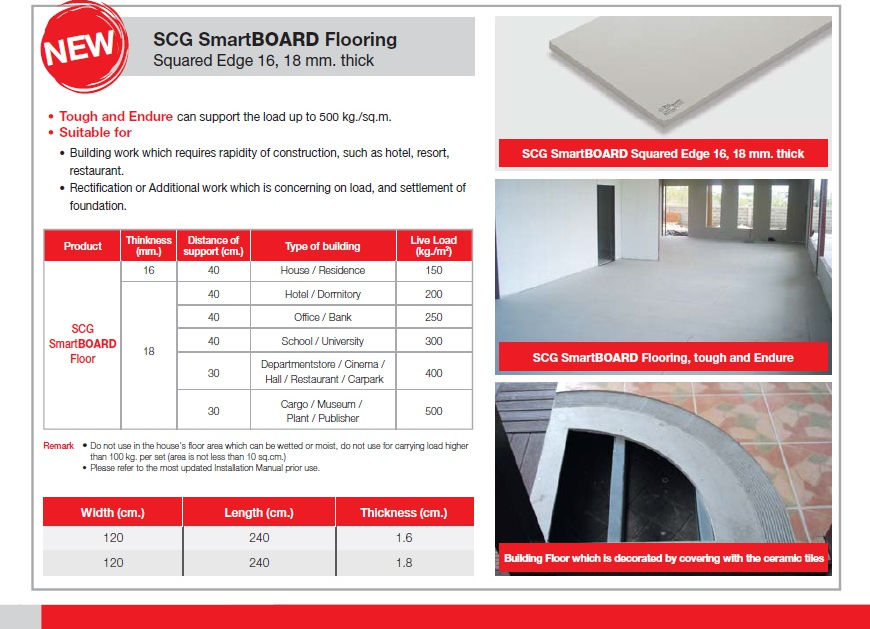

SCG SmartBOARD Flooring
Squared Edge 16, 18 mm. thick

SCG SmartBOARD Squared Edge 16, 18 mm. thick

SCG SmartBOARD Flooring, Tough and Endure

Building Floor which is decorated by covering with the ceramic tiles

BME PARTNERS INC.

SmartBoard

Ceiling Wall Floor

SCG SmartBOARD

Fiber Cement Board

Non Asbestos

SCG

SCG SmartBOARD

High molecular bonding strength from special material composition.

FIRM & FLEX Technology

Special Properties

FIRM

FLEX

High Impact strength

Water-Resistance and Non-decay

Termite Resistance

Flexibility for various designs

Light weight, fast & easy to install

Better heat resistance

Long lasting even using in hot, humid, and strong raining weather condition according to JIS Standard A5420.

Termite resistance from Portland cement material.

With only 30 kg. per sq.m total weight of internal partition and faster installation than conventional system, it provides flexibility of designs and durability of applications better than conventional systems

With specially low heat conductivity compared to typical light-weight ceiling and wall material, SCG SmartBOARD is the ideal material for preventing heat from external environment, reducing energy consumption and answering green designs.

High Impact strength from state-of-the-art composition of Elephant (SCG)Portand Cement, Silica and Special cellulose developed by our laboratory.

Bendable. No water is needed to applied while cement material.

SCG

Choosing SCG SmartBOARD to match your application

Application

Thickness (mm.)

Width x Length

(mm.)

Installation system

Weight

(kg./pc.)

Effective Area (sq.m./pc.)

Series

Internal and External Ceiling

Ventilated Ceiling

Internal and External Wall

Underlay

Flooring

SCG SmartBOARD Ceiling : mix and match designs for decoration

SCG SmartBOARD Ceiling can be installed with various elegant styles, such as bent ceiling, pocket ceiling or leveling ceiling, space lining ceiling or T-bar, or mixed among various models to enhance elegance. Down lights can be installed, or painted over by 100% acrylic paint as wished.

SCG SmartBOARD Timber 4 mm. thick

• Outstanding with deep wood suitable for natural housing style. • Easy and fast installation because of light-weight and various dimension. • Uncolor apply 100% Acrylic paint at least 2 times over primer paint.

Both ceiling (internal and external) and wall decoration are applicable

Width (cm.)

Length (cm.)

Thickness (cm.)

Internal Ceiling

Using several series of SCG SmartBOARD to create interesting perspective for your ceiling in your house.

SCG

Internal Ceiling

Using several series of SCG SmartBOARD to make your ceiling fabulous.

Internal Space No Lining Ceiling

Internal Space Lining Ceiling

Internal Space Lining Ceiling

Using SCG SmartBOARD Wood Grain 4 mm, thick to create natural style.

Using SCG SmartBOARD Squared Edge 4mm. thick.

Using SCG SmartBOARD Squared Edge 4mm. thick to give outstanding elegant style.

SCG SmartBOARD with Ventilated drills for ventilation ceiling application

Cool House System

Cool air from outside flows through the SCG SmartBOARD's ventilated drills to replace hot air under roof.

Hot air is pushed from air pressure out via the SCG SmartBOARD's ventilated drills on the other side. This will help to reduce the air temperature under the roof.

When the temperature in the roof air gap is lower, less heat can pass through the living area.

Double your heat protection by using SCG SmartBOARD for your internal ceiling because it has low k (heat conductivity rate) to minimize heat transferring from roof air gap in the living area.

SCG SmartBOARD Ceiling with ventilation drills

This is the ceiling with the factory-made drilled holes suitable for eaves ceiling application because it can endure the water or moisture. Three types of ventilated SCG SmartBOARD are profiled ventilated, ventilated wood grain, and ventilated 3-inch lining.

External Ceiling

External Ceiling

External Terrace Ceiling

Using SCG SmartBOARD Ventilated 4 mm. thick.

Using SCG SmartBOARD Ventilated Wood Grain 4 mm. thick.

Using SCG SmartBOARD Wood Grain / Ventilated Wood Grain 4 mm. thick.

SCG

SCG SmartBOARD Wall

High impact strength, lasting durability and easy installation

SCG SmartBOARD is the most suitable choice for external and internal wall & partition, especially in the construction of housing extended or renovated area

High impact strength and lasting durability : with maximum hanging weight up to 80 kg. each point and resist to moisture or even heat and rain in case of external usage.

Easy and fast installation : with the light-weight system at only 30 kg./sq.m. and no supported concrete beam required, SCG SmartBOARD system helps reduce all of construction time, materials and labor costs.

Thickness
(mm.)

Installation
system

Effective Area
(sq.m./pc.)

Internal and
External Wall

SCG SmartBOARD
Timber 4 mm. thick

• Outstanding with deep wood
suitable for natural housing style.
• Easy and fast installation
because of light-weight and various dimension.
• Uncolor
apply 100% Acrylic paint at least 2 times over primer paint.

Internal Space
No Lining Ceiling

Internal Space
Lining Ceiling

Internal Space
Lining Ceiling

Using SCG SmartBOARD Wood Grain 4 mm, thick to
create natural style.

Cool air from outside flows through the SCG SmartBOARD's
ventilated drills to replace hot air under roof.

When the temperature in the roof air gap is lower, less heat can pass
through the living area.

Double your heat protection by using SCG SmartBOARD for your
internal ceiling because it has low k (heat conductivity rate) to minimize heat transferring from roof air gap in the living area.

This is the ceiling with the factory-made drilled holes suitable for eaves ceiling application because it can endure the water or moisture. Three types of ventilated SCG SmartBOARD are profiled ventilated, ventilated wood grain, and ventilated
3-inch lining.

Using SCG SmartBOARD
Tapered Edge 8 mm. thick

Using SCG SmartBOARD, easy to
install without any floor beam reinforcement

SCG SmartBOARD
6-inch Square Lining Wood Grain with
Golden Teak Color 6, 8 mm. thick

Elegance by natural teak style, with 6" spacing grooves
after complete the installation, it will be similar to panel-hidden wooden wall,
can be used in either interior or exterior.

Time saving, and Reducing the installation cost,
with bigger panel size of 60 cm width, and 300 cm length, so it provides fast installation, without additional cost for color painting.

Tough, Endure, inedible by termites
because made from Elephant (SCG) Portland Cement mixed by the cellulose
fiber, and passing the process of vaporization using higher temperature and pressure, not shrinkage and rotting.

Using SCG SmartBOARD Tapered Edge 8 mm. thick
painted with 100% Acrylic paint.

Using SCG SmartBOARD Squared Edge 10 mm. thick
installed with ceramic tiles.

External Cladding
Metro Park Condominiumtown,
Bangkok

External Cladding
Phenix pulp and paper
plant, Khonkaen

Internal Wall
SCG Experience,
Bangkok

Creating space lining by using SCG SmartBOARD
Squared Edge 8 mm. thick.

Creating space lining by using
SCG SmartBOARD Squared Edge
10 mm. thick.

Using SCG SmartBOARD Squared Edge 8 mm.
thick plastered with plastering cement, make
1 - 3 cm. skim coat.

External Fence
Picasus narcissus,
Bangkok

Internal Wall
Lux or Hotel,
Bangkok

Using SCG SmartBOARD 8, 10 and 12 mm. thick to be installed
as sub roof to prevent the leakage due to external water flow, in either.

SCG SmartBOARD Flooring
Squared Edge 16, 18 mm. thick
